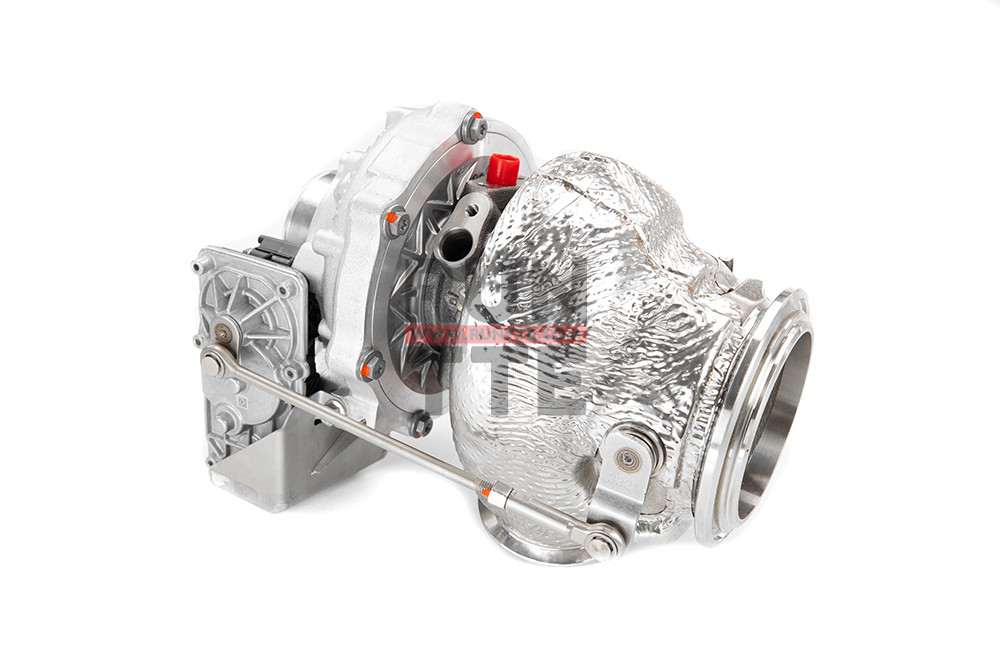

The Turbo Engineers TTE560 AMG M139 UPGRADE TURBOCHARGER
د.إ14,400.00
Upon placing the order, we will get in touch with you to confirm the availability information.
For Instant Enquiry and More Details, Please Click Here
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
Product information “TTE560 AMG M139 UPGRADE TURBOCHARGER”
MERCEDES AMG TTE560 A45 / A45 S / CLA / GLA M139
TTE’s First hybrid turbocharger for the M139 AMG 2.0 Inline 4 cylinder engine.
Stage 1 hybrid using a larger a BorgWarner compressor and still keeping the original exhaust turbine and original ball bearing system so is focused on daily fast boost response with motorsport durability.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test document.
Product Highlights:
- Original BorgWarner turbocharger as base part
- Fast Response & Durability at high boost levels
- BorgWarner Billet Milled compressor 6+6 BLADE (proven at 550hp+)
- BorgWarner Turbine
- OEM Ball Bearing System
- Plug and Play installation
- Software recalibration is required
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- 1 YEAR TTE TROUBLE-FREE WARRANTY
- Made in Germany
If selecting to ship your turbocharger for upgrade please ensure you ship the turbocharger inlet as shown in pictures!
Additional information
| Brand | The Turbo Engineer |
|---|---|
| Make | A45, CLA45, GLA45, Mercedes-Benz |
| Model Year | 2019, 2020, 2021, 2022, 2023, 2024 |
