Forge Motorsport Intercooler for BMW F20, F21, F22, F23, F30, F31, F36, F87 Chassis – FMINT135F20

Description

• Forge designed and manufactured specifically for an engineered fit to your BMW Chassis.
• Utilising a solid works designed high flow hand manufactured end tanks.
• High density bar & plate construction air core.
• A simple and easy direct bolt on to the OEM position.
• Includes all hardware needed to install.

Vehicle Fitments

F20, F21 Chassis

118i ,120d ,120dX, 125d, 125i, 135i,

F22,F23 Chassis
218d, 220d, 220i, 225d, 228i, 235i,

F30, F31, F34 Chassis
316d, 316i, 318d, 318dX, 320d, 320i, 320dX, 325d, 328i, 330d, 335d, 335i

F32, F36 Chassis
420d, 420dX, 420i, 420iX, 418d, 420d, 420dX, 420,i 420iX, 425d, 428i, 430d, 435d, 435i

F87 Chassis
M2

This uprated intercooler has been designed for the BMW vehicles with the N55 3.0 single turbo engine and N54 twin turbo engine, we have again managed to retain a very easy installation (taking less than 45 minutes with no need to remove the bumper), but also NO cutting of any bodywork. With our testing results indicating a temperature drop of 25°C and of course the increase in power that you would expect from a much larger cooler charge, plus the ability to install this on your driveway at home, we have a truly excellent product.

After considerable trials with different intercoolers cores, we have again opted for a core of bar and plate design, and along with an overall increase in dimensions we have been able to drastically improve the cooling ability when compared to the factory intercooler. In the construction, we use CNC machined bayonet couplers which allow an easy plug and play install. The intercooler is supplied with easy to follow instructions.

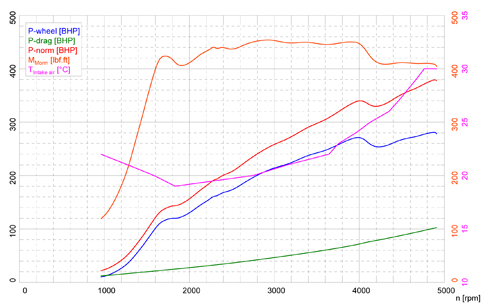

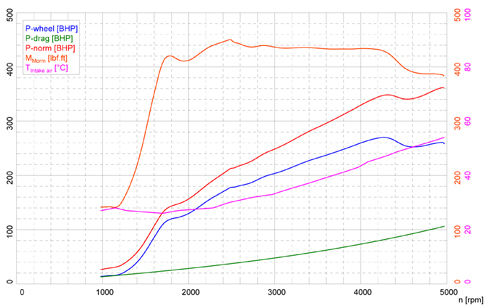

Our before and after Dyno runs clearly show, not only the power increase, but the significant reduction in intake temperature.

Compatible Vehicles :
